Vertical Module

Spring-powered mechanism that assists in carrying your SliderPLUS PRO setup, allowing the Motor Module to move the SliderPLUS PRO effortlessly at any incline.

*Designed to work together with Motor Module (for SliderPLUS)

Vertical Module for SliderPLUS PRO

Sale price$549
Ships in 2 weeks

You want to use the Vertical Module, but you only have the regular version of SliderPLUS? (not the PRO)

Get the PRO Fit Module and make your SliderPLUS compatible with the Vertical Module!

Whole New World of Storytelling Possibilities

Deceptively Simple, Well Balanced System.

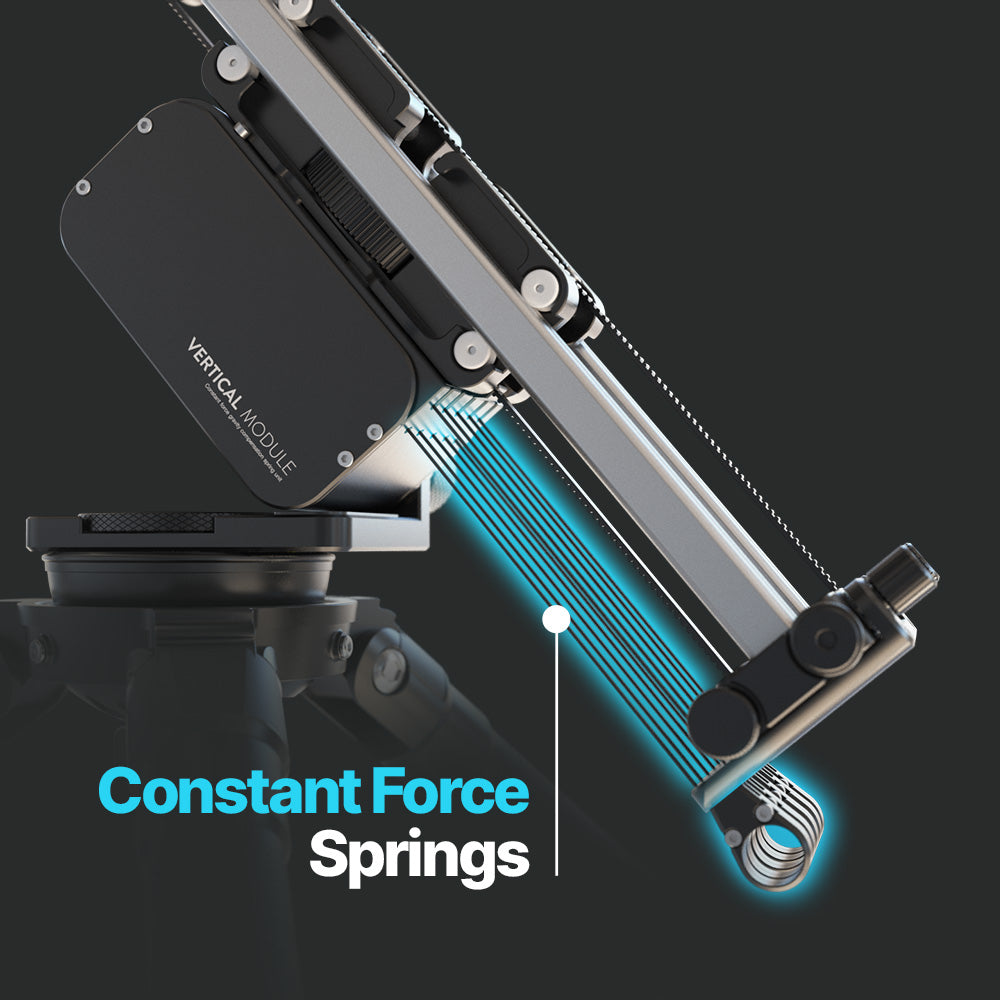

All Mechanical

Vertical Module compensates for gravity, keeping the system weightless at any angle with the help of constant force springs. No need for extra batteries!

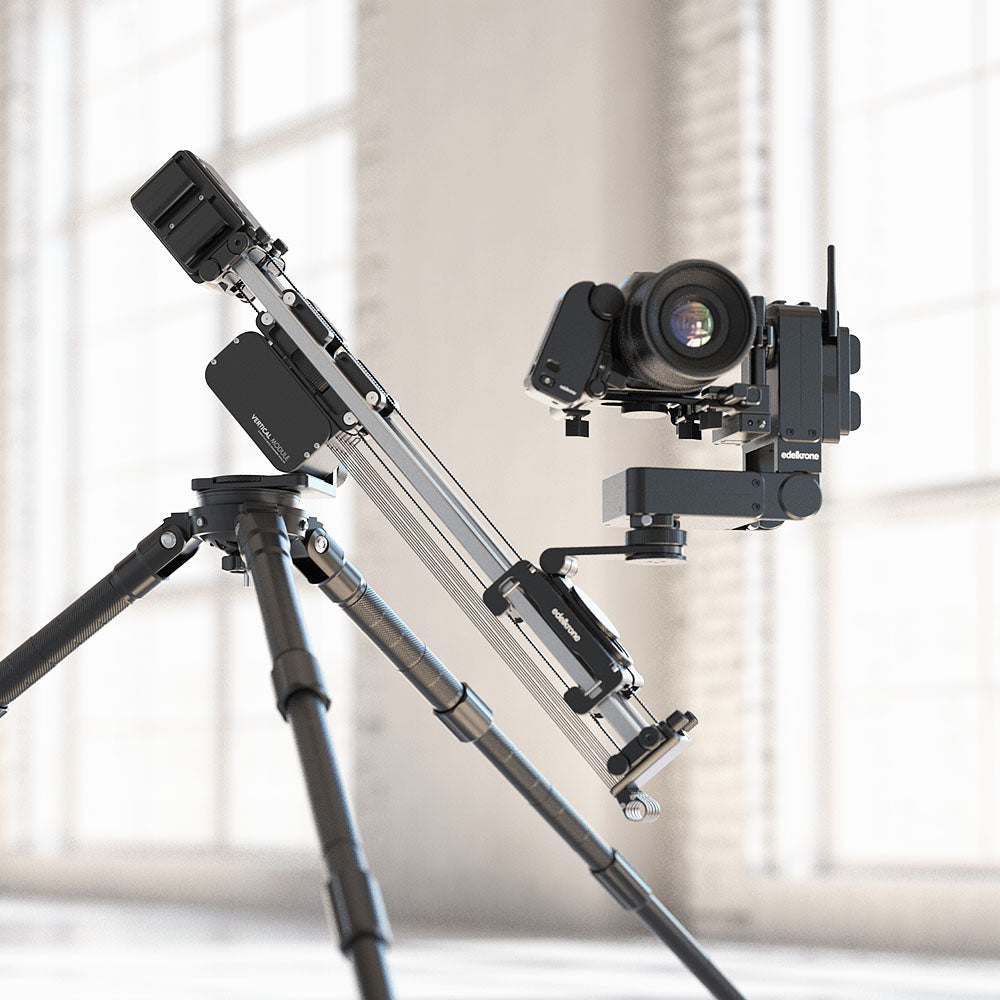

Heavy Lifter

Despite weighing about just 1 kg, Vertical Module can
lift SliderPLUS PRO + Motor Module + HeadPLUS and a
camera even at absolute vertical motion.

NOTE: The range of motion under full load may fall below the full range of motion of the slider, but even under full load, you are guaranteed to get at least 60 cm of vertical movement.

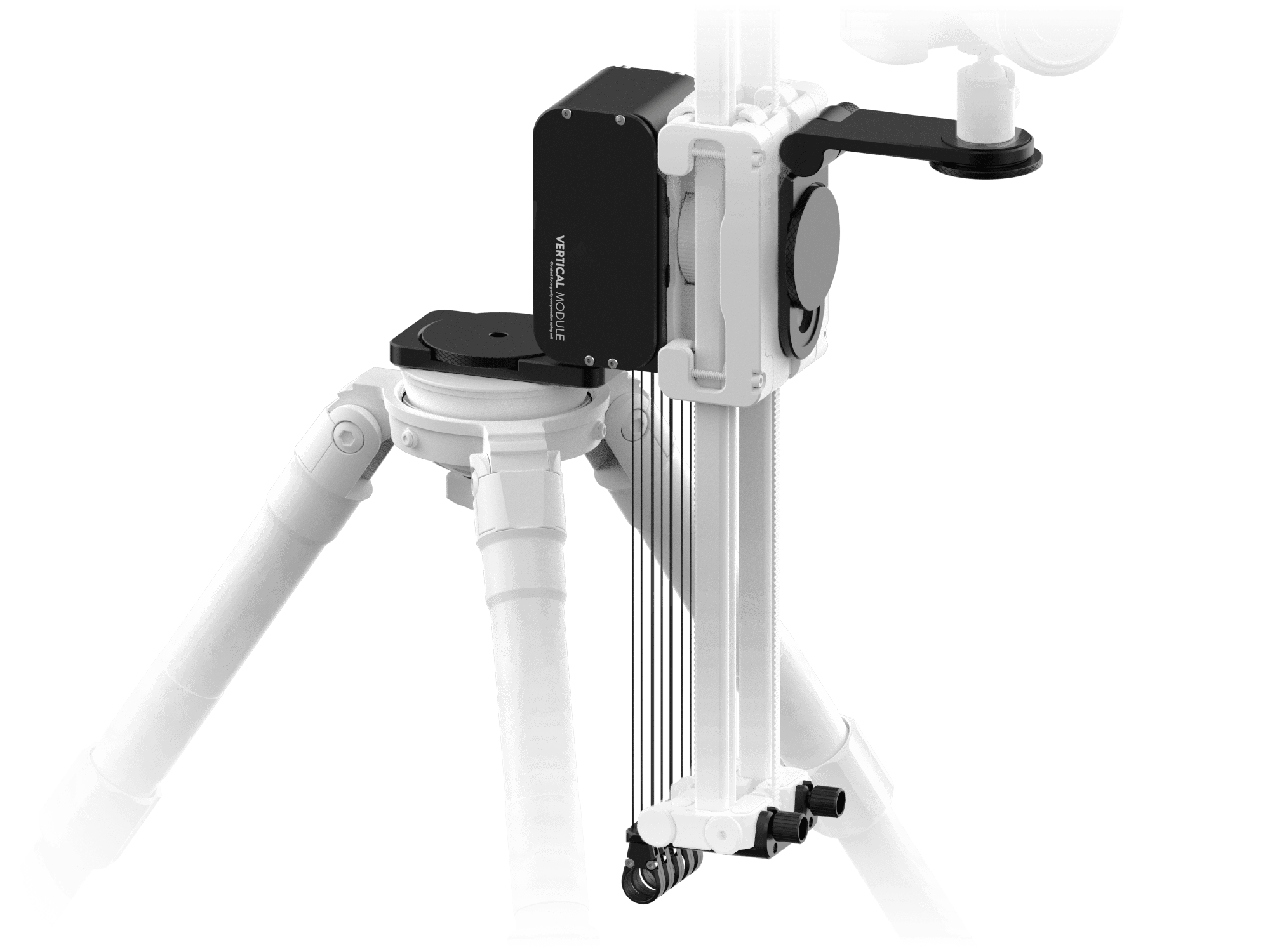

Slide into the Future

SliderPLUS Keeps Delivering 2x Motion

Experience the full vertical range of your SliderPLUS PRO with the Vertical Module. Elevate your shots seamlessly. Though keep in mind, as the load increases, there might be a slight decrease in movement range.

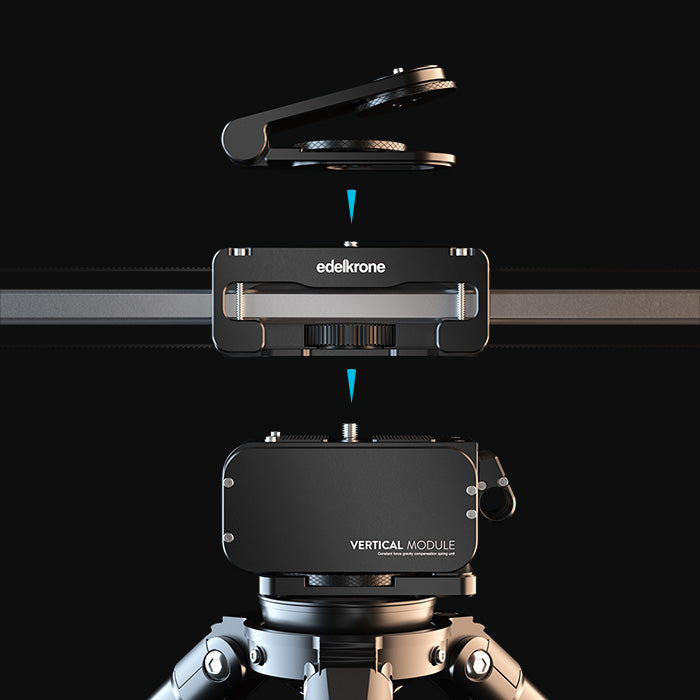

Fast & Simple Setup

Attaches Under SliderPLUS PRO Models

Vertical Module is designed to be compatible with SliderPLUS PRO models as well as SliderPLUS models equipped with the PRO Fit Module.

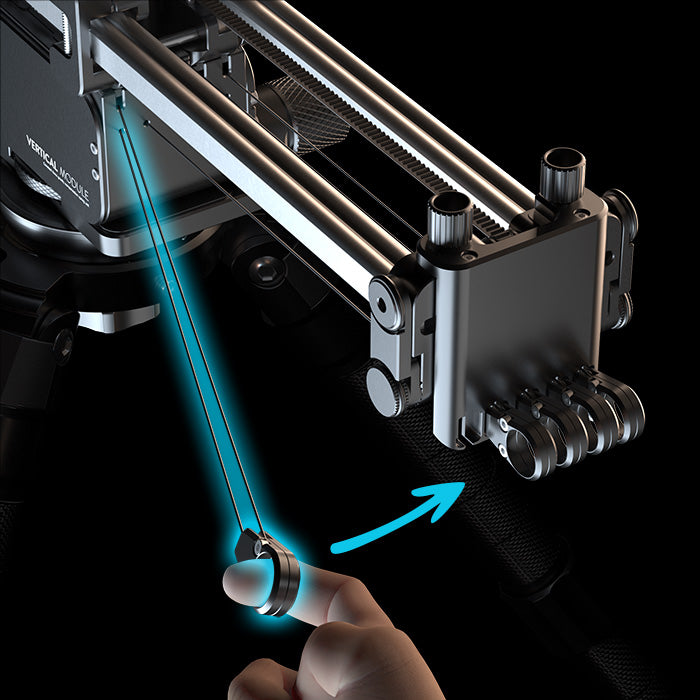

Easily Counterbalance Your Equipment

The module offers 5 levels of spring tension to accommodate different equipment weight, easily adjustable by attaching the necessary number of rings to SliderPLUS's side (Side piece included with Vertical Module).

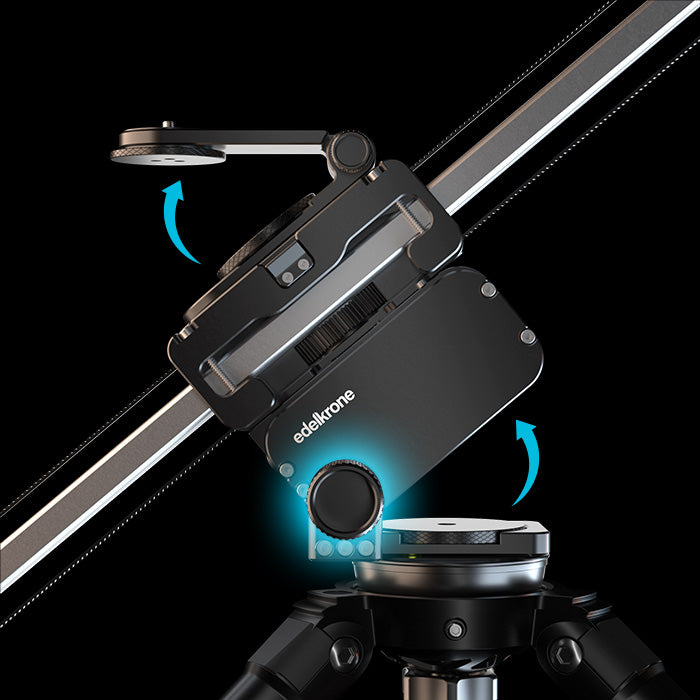

Adjust Slide Angle with the Turn of a Knob

Vertical Module utilizes an axis knob that allows for quick angle adjustments on the go.

Time-lapse & Stop Motion Ready

Vertical Module enables SliderPLUS to capture stunning time-lapses at any slide angle.

Compact. Lightweight. Game-changer.

Tech Specs

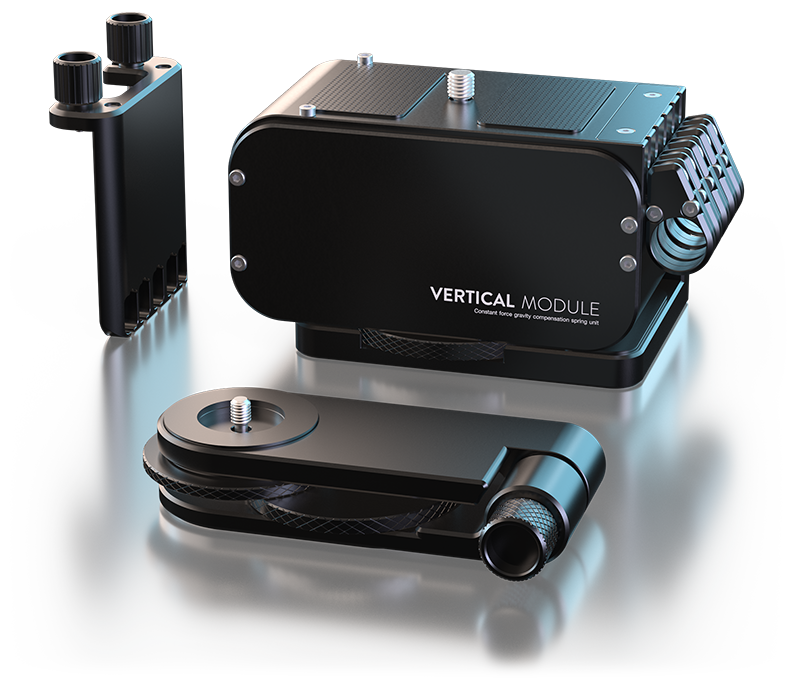

Box Content
  • - Spring Box Unit
  • - L Bracket
  • - Side Panel (with 2x attachment screws)
  • - Motor Module manual engagement knob
  • - Motor Module tension adjustment screw
Carrying Capacity

Can lift SliderPLUS PRO + Motor Module + HeadPLUS and a camera (with 3 lbs weight on average) at absolute vertical motion for up to 60 cm.

Motion range can increase up to 90 cm for lower weights or shallower inclines.

Dimensions
  • Spring Box Unit: 140x80x85 mm
  • L Bracket: 65x28x135 mm
  • Side Port: 80x75x8 mm
Weight

Spring Box Unit: 1359 grams

L Bracket: 358 grams

Side Port: 127 grams

Connection Ports

Spring Box Unit has 3/8” port underneath. 3/8 screw on top.

L Bracket has 3/8” Port underneath and 1/4” screw on top.

Incline Limits

Incline can be adjusted every 10 degree steps. Both spring box and L bracket.

Spring Box Unit max Incline 90 degrees.

Quantity of Springs

5 Tension Springs

Spring Strength

2.4-3 kg each. (Depending on the amount of tension applied.)
